N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod

Brand Name : KAIXIN

Model Number : KX-Alloy52

Certification : ISO9001:2015

Place of Origin : China

MOQ : 200KG

Price : To negotiate

Payment Terms : T/T, L/C

Supply Ability : 50~80TONS per MONTH

Delivery Time : 45~60days

Packaging Details : Wooden Box, size as per guests's request

Shape : Wire,Strip,Rod,Tube,Plate

Alloy Type : Nickel-iron Alloy

Raw Materials : NI50.5%,Fe Rem

Executive standard : ASTM

Delivery State : Soft State

Application : For automobile industry

Features : There is a certain linear expansion coefficient within the given temperature range

Size : Negotiable

Contact Now

KX Alloy 52 Corrosion Resistant Alloy Light Rod On Expansion Alloy



Product Description and Application



Alloy 52 is also known as Alloy 52,Glass sealing 52,Pernifer 50,52H(E),N14052.
Alloy 52 Fe-Ni constant expansion alloy is a series of constant expansion alloys that can match soft glasses and ceramics with different expansion coefficients in a given temperature range by adjusting nickel content. The expansion coefficient and Curie point increase with the increase of nickel content. This alloys is widely used as sealing structural materials in electric vacuum industry.

Process Performance and Requirements


  • Product Fusion Process


Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)


  • Product Chemical Composition



Alloy Grade C P S Mn Si Al Co Ni Fe
Alloy52 ≤0.05 0.020 0.020 0.60 0.30 ---- --- 51.5～ 52.5 Rem



  • Product Physical Property



Density 8.3g/cm3
Melting Point 1430℃



  • Product Mechanical Property


Wire Tensile Strength

State Code State Tensile Strength/MPa
R Soft <590
I Hard >820


Strip Tensile Strength

State Code State Tensile Strength/MPa
R Soft <570
I Hard >700



  • Product Average Coefficient of Linear Expansion
Alloy Grade Sample Heat Treatment Institution Average Linear Expansion Coefficient α/(10-6/ K)
20～300 oC 20～400 oC 20～450 oC
Alloy 52 It is heated to 850±20 oC in hydrogen atmosphere, Keeps warm for 1 hour and cooled to less than 200 oC at a speed of no more than 5 oC/ min 9.8～ 11.0 9.81～ 11.0 -------



  • Productive Process


N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod


  • Professional Customization

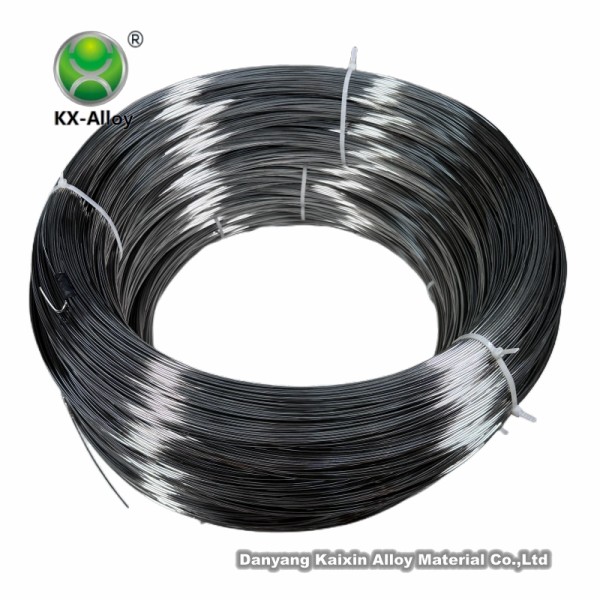

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)
Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)

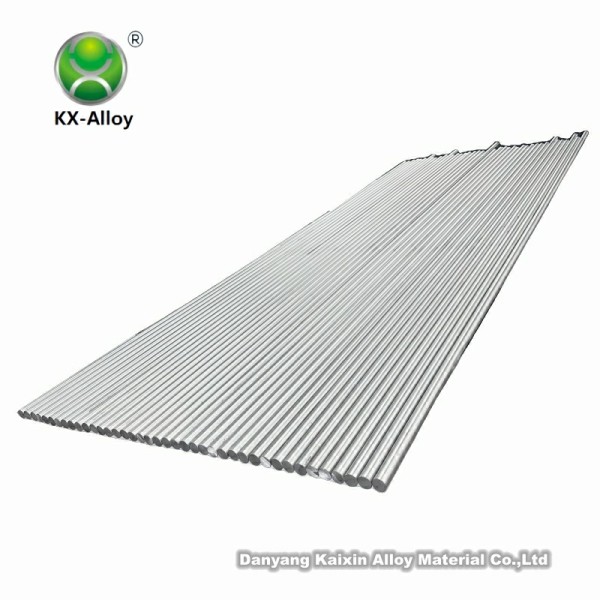

Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm
Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm

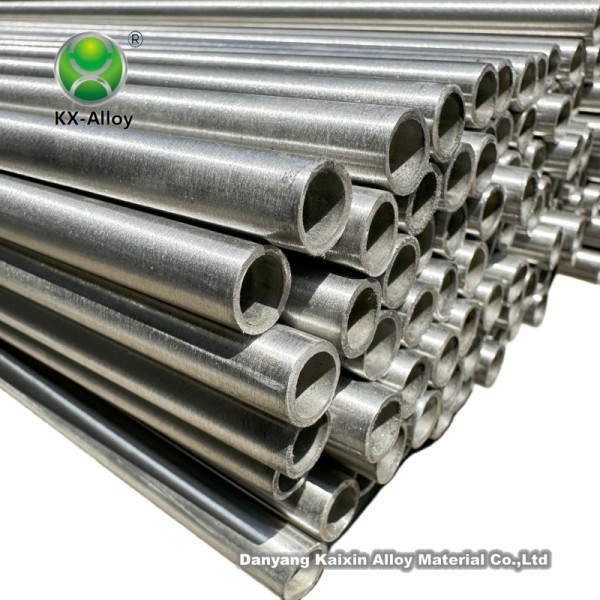

Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm


N14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light RodN14052 Expansion Alloy 52 ASTM Corrosion Resistant Alloy Light Rod
