KX Alloy32 Corrosion Resistant Alloy Light Rod On Expansion Alloy

Brand Name : KAIXIN

Model Number : KX-Alloy EX32

Certification : ISO9001:2015

Place of Origin : China

MOQ : 200KG

Price : To negotiate

Payment Terms : T/T, L/C

Supply Ability : 50~80TONS per MONTH

Delivery Time : 45~60days

Packaging Details : Wooden Box, size as per guests's request

Shape : Wire,Strip,Rod,Tube,Plate

Alloy Type : Low expansion Fe-Ni-Co Alloy

Raw Materials : NI31.5-33%，CO3.2-4.2%,Fe Rem

Executive standard : ASTM1684

Delivery State : Soft State

Application : Produce a variety of instruments, instrument parts, thermal bimetallic passive layer, resonant cavity with the stable size

Features : High hardness and good processing performance

Size : Negotiable

Contact Now

Product Description and Application



Alloy32 is also also known as 4J32, Super Invar

Alloy32 alloy is called Super-Invar alloy. Its expansion coefficient is lower than 4J36 alloy in the range of -60 ~ 80℃, but its microstructure stability is worse than 4J36 alloy at low temperature. The alloy is mainly used in the manufacture of highly precise instrument parts requiring sizes within the range of ambient temperature variations.





Process Performance and Requirements



  • Product Fusion Process



Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)



  • Product Chemical Composition



Alloy Grade

Chemical Composition (Mass Fraction)(%)
C Si P S Cu Cr Mn Ni Co Fe
Alloy32 ≤
0.05 0.2 0.02 0.02 0.40～0.80 --- 0.20～0.60 31.5～33.0 3.20～4.20 Rem





  • Product Coefficient of Linear Expansion



Alloy Grade Sample Heat Treatment Institution

Average Coefficient of Linear Expansion α(10-6/ K)
20～l00℃ 20～300°C
Alloy 32 The semi-finished sample was heated to 840±10°C, heat preservation for 1 hour, water quenched and then the sample was processed into finished sample. At 315±l0℃ heat preservation for 1 hour with furnace cooling or air cooling ≤1.0 ---



  • Product Typical Expansion Coefficient



Alloy Grade Average Coefficient of Linear Expansion α(10-6/ K)
20～50℃ 20～100℃ 20～200℃ 20～300℃ 20～400℃ 20～500℃
Alloy 32 0.7 0.8 1.4 4.3 7.2 9.3





  • Productive Process



KX Alloy32 Corrosion Resistant Alloy Light Rod On Expansion Alloy









  • Professional Customization

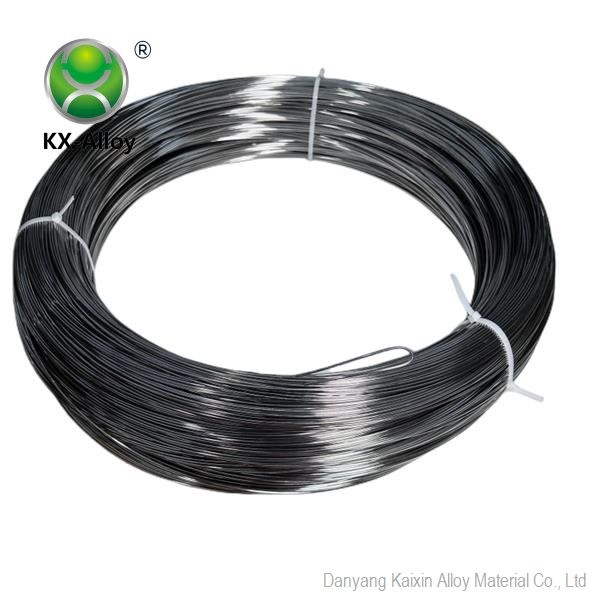

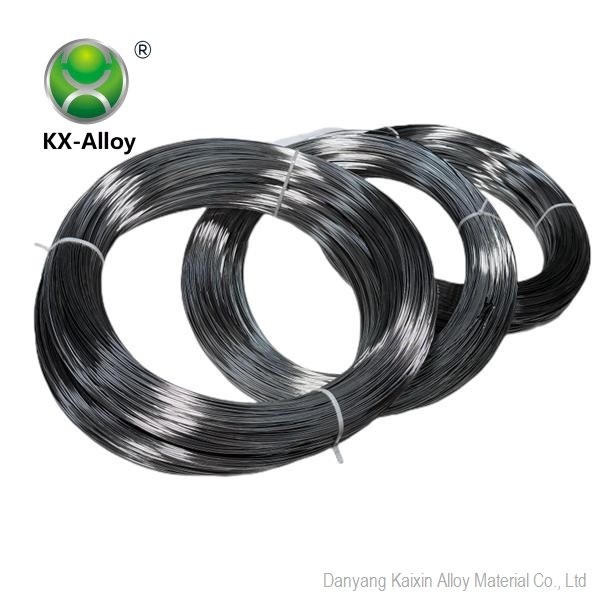

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)

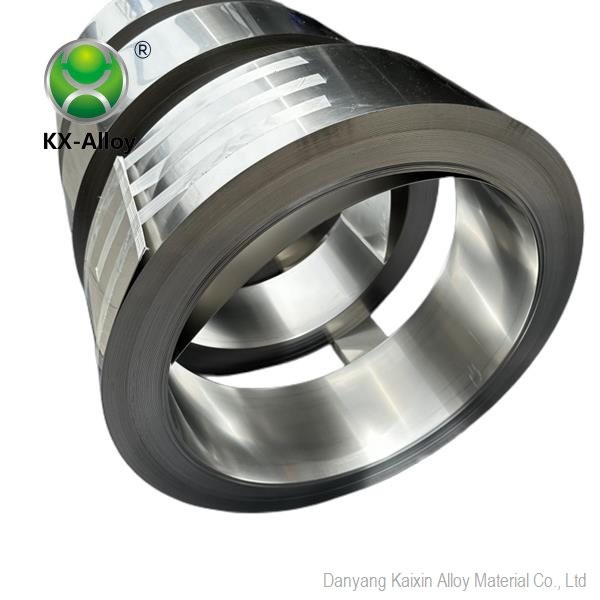

Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm


Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm





KX Alloy32 Corrosion Resistant Alloy Light Rod On Expansion Alloy
