N06601 Inconel Alloy Round Inconel 601 Rod Alloy 601 Pipe Nickel Chromium Alloy Wire

Brand Name : KAIXIN

Model Number : KX-Alloy IN601

Certification : ISO9001:2015

Place of Origin : China

MOQ : 200KG

Price : To negotiate

Payment Terms : T/T, L/C

Supply Ability : 50~80 TONS per MONTH

Delivery Time : 45~60days

Packaging Details : Wooden Box, size as per guests' request

Shape : Wire,Strip,Rod,Pipe,Plate

Alloy Type : Nickel-chrome-iron Alloy

Raw Materials : NI63%,CR21-25%,Fe10-15%

Executive standard : ASTM

Delivery State : Sosoloid

Application : It is used for heat treatment equipment such as industrial furnaces, baskets, Muffle furnaces and distillation tanks, steel wire annealing tubes, petrochemical and other process equipment, burner nozzles, gas turbine equipment, superheater tube supports an

Features : Excellent corrosion resistance and oxidation resistance

Size : Negotiable

Contact Now

KX N06601 Nickel Alloy Wire Round Bar Tube Steel Sheet Light Rod on Inconel Alloy



Product Description and Application



N06601 is nickel-chromite alloy with aluminum that has excellent oxidation resistance and other high-temperature corrosion as well as improved resistance to nitriding. It also has high mechanical properties at high temperatures, which is used in heat treatment plant for pallet, basket and fixture, exhaust system components, pipe support and soot treatment components.



Process Performance and Requirements



  • Product Fusion Process



 Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)



  • Product Chemical Composition



Alloy % Ni Cr Fe C Mn Si Cu Al P S
N06601 Min Rem 21 10         1.0
Max   25 15 0.1 1 0.5 1 1.7 0.03 0.015



  • Product Physical Property



Density 8.1 g/cm3
Melting Point 1320-1370℃



  • Product Mechanical Property



Alloy State

Tensile strength

Rm N/mm2

Yield strength

RP0.2 N/mm2

Percentage Elongation

A5 %

Brinell Hardness

HB
Annealing Treatment 650 300 30 -
Solution Treatment 600 240 30 ≤220



  • Productive Process



N06601 Inconel Alloy Round Inconel 601 Rod Alloy 601 Pipe Nickel Chromium Alloy Wire







  • Professional Customization

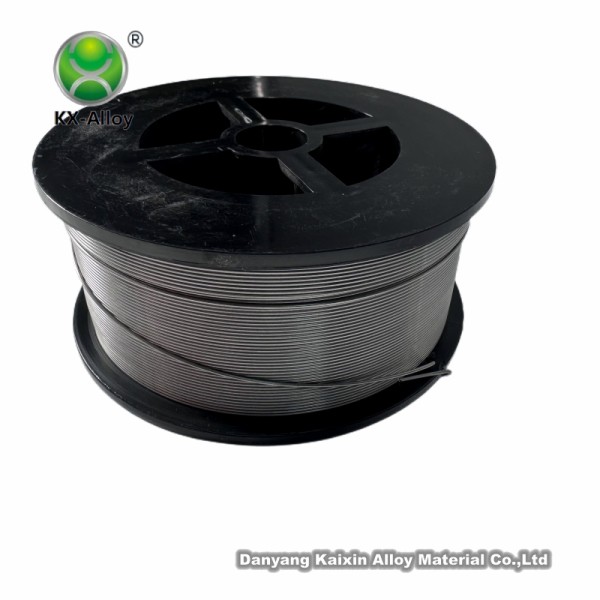

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)
Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)

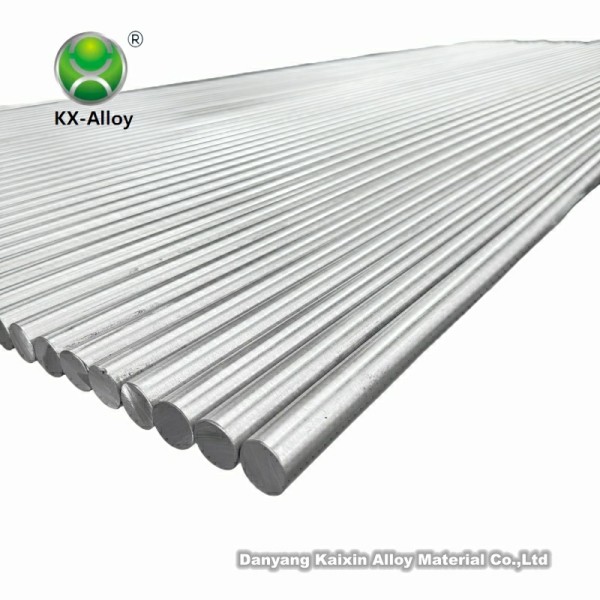

Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm
Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm



N06601 Inconel Alloy Round Inconel 601 Rod Alloy 601 Pipe Nickel Chromium Alloy Wire

N06601 Inconel Alloy Round Inconel 601 Rod Alloy 601 Pipe Nickel Chromium Alloy WireN06601 Inconel Alloy Round Inconel 601 Rod Alloy 601 Pipe Nickel Chromium Alloy WireN06601 Inconel Alloy Round Inconel 601 Rod Alloy 601 Pipe Nickel Chromium Alloy WireN06601 Inconel Alloy Round Inconel 601 Rod Alloy 601 Pipe Nickel Chromium Alloy Wire
